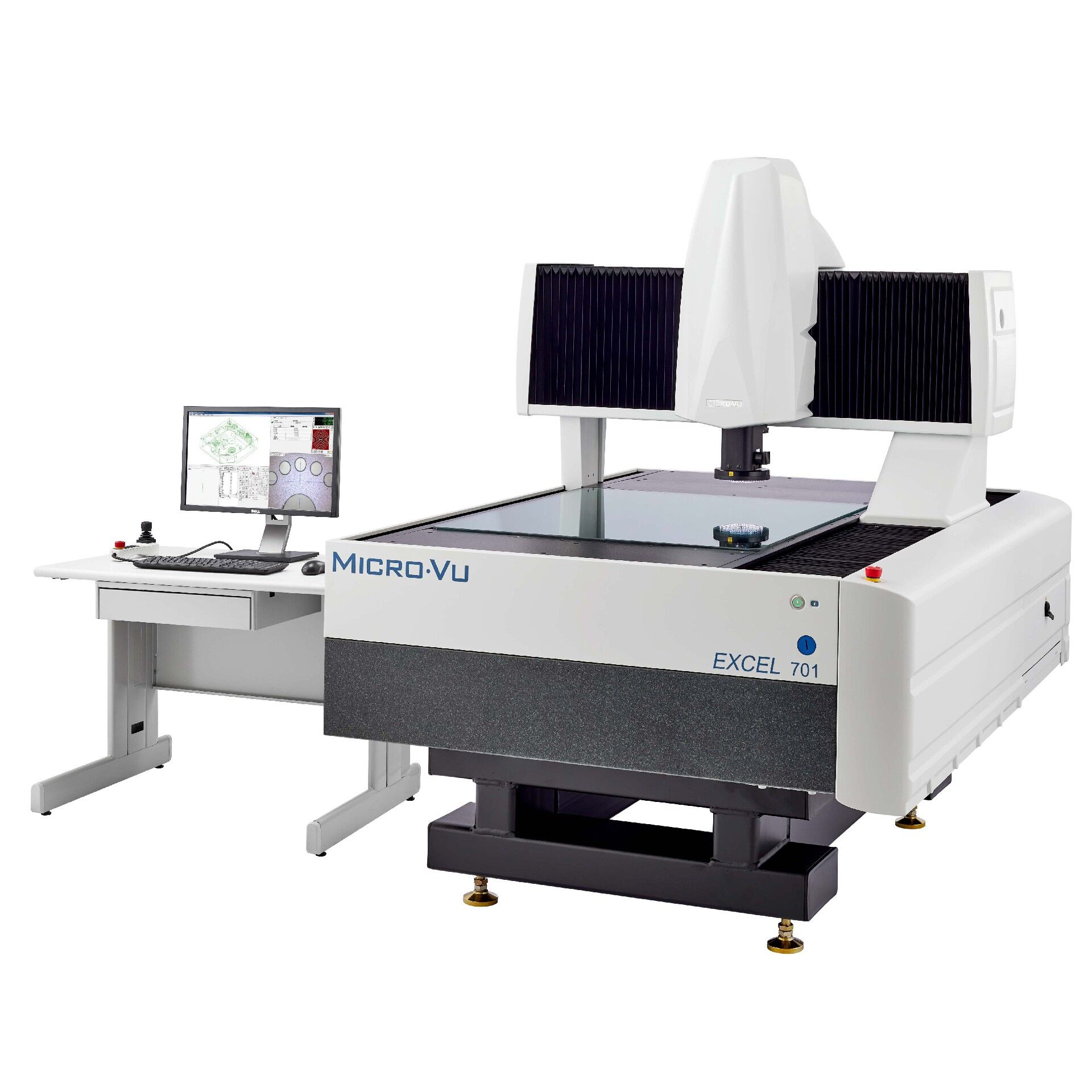

MICRO-VU EXCEL 511/512/701/702/704 Series -Medium Range

Measuring Range (XY): 420×520 mm-660×700 mm
Measuring Height (Z): 160-400 mm
Excel 500/700 Automated Vision Measuring Machine, is widely used in industries as PCB, Mobile Phone, O-Ring, Gasket, Automobile etc.
Touch Probe, Laser and Rotary can be added on the vision measuring machine to construct multisensory measuring system and finish the measurement of some special dimensions.

Contact us

Overview

The Excel 500/700 Measuring System implements new technologies to provide speed and accuracy on a reliable and affordable measuring machine.

The system includes InSpec Metrology Software, a programmable optical zoom, 3x digital zoom, non-linear stage compensation, non-linear optics compensation, advanced LED lighting, and active temperature monitoring.

InSpec Metrology Software provides point-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.

Included services :

Installation of Micro-vu Machine

Training of Micro-vu Machine

Calibration of Micro-vu Machine

Maintenance of Micro-vu Machine

Repair of Micro-vu Machine

Specification

Model Measuring Range (mm) XY Accuracy (μm) Z Accuracy (μm) Resolution Capacity Machine Dimensions (mm)
Excel 511 420x520x160 2.5+L/200 2.5+L/100 0.05 μm 100 kg 1295x1221x1629
Excel 512 420x520x250 2.8+L/175 3.0+L/100 0.05 μm 100 kg 1295x1221x1803
Excel 701 660x700x160 2.5+L/200 2.5+L/100 0.05 μm 100 kg 1525x1607x1647
Excel 702 660x700x250 2.8+L/200 3.0+L/100 0.05 μm 100 kg 1525x1607x1819
Excel 704 660x700x400 3.5+L/150 3.8+L/100 0.05 μm 100 kg 1525x1607x2119

Application

Measurement Production Line Upgrade | Robot Automatic Loading and Unloading

Measurement Production Line Upgrade | Robot Automatic Loading and Unloading

With the continuous integration of informatization and industrialization, and the continuous development of the intelligent manufacturing industry, the intelligent industry represented by robot arm is booming. The emergence of industrial robot arms solved the difficult recruitment problems caused by the harsh working environment and high labor intensity.Using a robot arm instead of an operator can
See more
Knotless Screen Mapping Application | Micro-Vu High Precision Vision Measuring Machine

Knotless Screen Mapping Application | Micro-Vu High Precision Vision Measuring Machine

Solar cells are one of the important products in the new energy industry. Conventional screen printing has poor line uniformity, which has reached a bottleneck for the pursuit of higher and narrower line for higher efficiency. Problem of alignment and cost control for second time printing technology and the improvement of efficiency cannot satisfy customers.
See more
Cell Measurement Application | Micro-Vu high-precision vision measuring machine

Cell Measurement Application | Micro-Vu high-precision vision measuring machine

In the photovoltaic industry, the vision measuring machine is mainly used in SE processing department, screen processing, R&D department and Quality department, and is mainly used for inspection of cells and screens. In cell inspection, LED surface light of Micro-Vu vision measuring machine can be adjusted forwards, backwards, left and right, 5 rings, 8 sectors
See more
