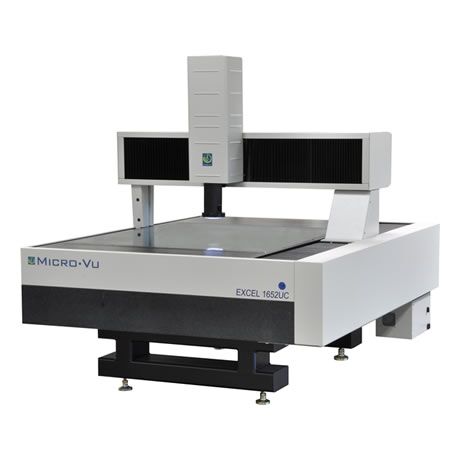

MICRO-VU EXCEL 900/1300/1700/2500 Series- Large Range
Micro-vu Excel 901/902/904/1301/1302/1304/1701/1702/1704/2500
Measuring Range (XY): 750×900 mm-1600×2560 mm
Measuring Height (Z): 160-400 mm
Excel 900/1300/1700/2500 Automated Vision Measuring Machine, is widely used in industries as Aerospace, PCB, Machining, Sheet Metal etc. Can add Touch Probe, Laser and Rotary on the vision measuring machine to construct multisensory measuring system.
Overview
The Excel 900/1300/1700/2500 Automated Vision Measuring System implement new technologies to provide speed and accuracy on a reliable and affordable measuring machine.
The system includes InSpec Metrology Software, a programmable optical zoom, 3x digital zoom, non-linear stage compensation, non-linear optics compensation, advanced LED lighting, and active temperature monitoring.
InSpec Metrology Software provides point-click simplicity, proprietary edge detection, advanced lighting control and calibration, multi-sensor integration, automated calibrations, and a clear display of measurement data and tolerances.
Included services :
Installation of Micro-vu Machine
Training of Micro-vu Machine
Calibration of Micro-vu Machine
Maintenance of Micro-vu Machine
Repair of Micro-vu Machine
Specification
Model | Measuring Range (mm) | Machine Weight (kg) | XY Max Speed (mm/s) | Z Max Speed (mm/s) | Resolution | Capacity | Machine Dimensions (mm) |
Excel 901 | 750x900x160 | 2630 | 500 | 250 | 0.05 μm | 100 kg | 1625x1808x1647 |
Excel 902 | 750x900x250 | 2644 | 500 | 250 | 0.05 μm | 100 kg | 1625x1808x1819 |
Excel 904 | 750x900x400 | 2655 | 500 | 250 | 0.05 μm | 100 kg | 1625x1808x2119 |
Excel 1301 | 1050x1300x160 | 3085 | 500 | 250 | 0.05 μm | 100 kg | 1925x2208x1647 |
Excel 1302 | 1050x1300x250 | 3096 | 500 | 250 | 0.05 μm | 100 kg | 1925x2208x1819 |
Excel 1304 | 1050x1300x400 | 3108 | 500 | 250 | 0.05 μm | 100 kg | 1925x2208x2119 |
Excel 1701 | 1250x1700x160 | 3492 | 500 | 250 | 0.05 μm | 100 kg | 2125x2608x1647 |
Excel 1702 | 1250x1700x250 | 3504 | 500 | 250 | 0.05 μm | 100 kg | 2125x2608x1819 |
Excel 1704 | 1250x1700x400 | 3515 | 500 | 250 | 0.05 μm | 100 kg | 2125x2608x2119 |
Excel 2500 | 1600x2560x200 | 6904 | 500 | 250 | 0.05 μm | 100 kg | 2407x3470x1972 |
Optional fittings
Application
![Measurement Production Line Upgrade | Robot Automatic Loading and Unloading](https://vertexvietnamvn.com/wp-content/uploads/2021/06/9.jpg)
Measurement Production Line Upgrade | Robot Automatic Loading and Unloading
With the continuous integration of informatization and industrialization, and the continuous development of the intelligent manufacturing industry, the intelligent industry represented by robot arm is booming. The emergence of industrial robot arms solved the difficult recruitment problems caused by the harsh working environment and high labor intensity.Using a robot arm instead of an operator can
![Knotless Screen Mapping Application | Micro-Vu High Precision Vision Measuring Machine](https://vertexvietnamvn.com/wp-content/uploads/2021/06/7.jpg)
Knotless Screen Mapping Application | Micro-Vu High Precision Vision Measuring Machine
Solar cells are one of the important products in the new energy industry. Conventional screen printing has poor line uniformity, which has reached a bottleneck for the pursuit of higher and narrower line for higher efficiency. Problem of alignment and cost control for second time printing technology and the improvement of efficiency cannot satisfy customers.
![Cell Measurement Application | Micro-Vu high-precision vision measuring machine](https://vertexvietnamvn.com/wp-content/uploads/2021/06/1.jpg)
Cell Measurement Application | Micro-Vu high-precision vision measuring machine
In the photovoltaic industry, the vision measuring machine is mainly used in SE processing department, screen processing, R&D department and Quality department, and is mainly used for inspection of cells and screens. In cell inspection, LED surface light of Micro-Vu vision measuring machine can be adjusted forwards, backwards, left and right, 5 rings, 8 sectors
